Product Details

Product description

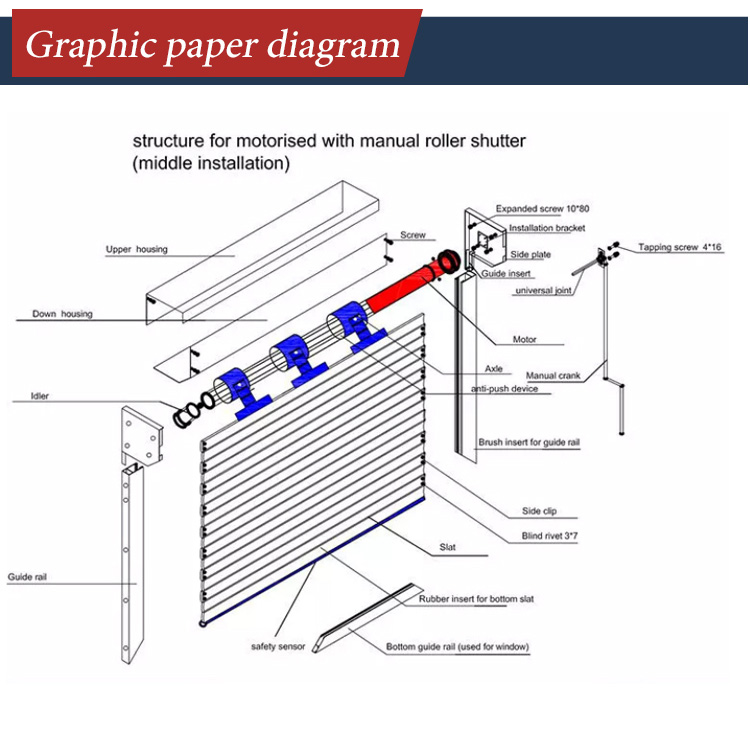

Rolling doors are made up of a series of tongue-and-groove slats that are collected rolled up on an axis in a superior position on the door frame. The entire roll with its axis is hidden inside the "top cover" or called shutter box. The top covers are usually between 32 and 40 cm per side.

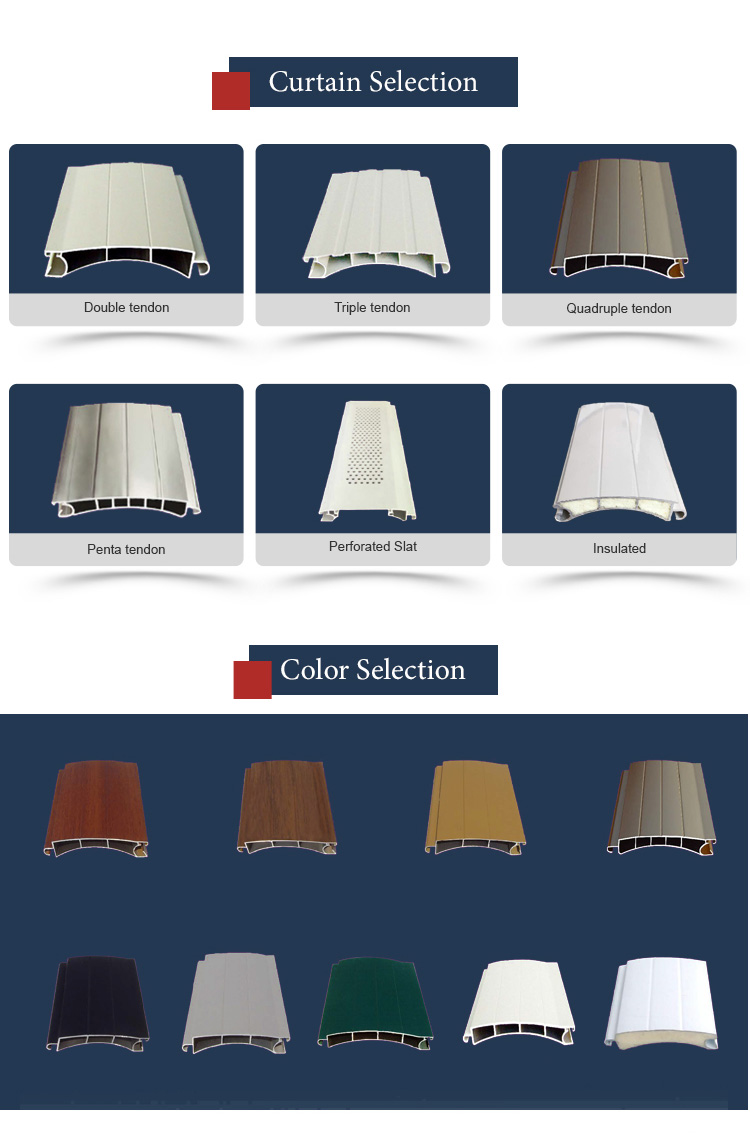

The roller shutter slats can have a flat or curved section. Flat slats give a more uniform look to the exterior but require bigger cover to roll up. Curved slats require smaller covers and give the option of having self-locking tongue-and-groove joints that reinforce the closure in the closed position.



Options

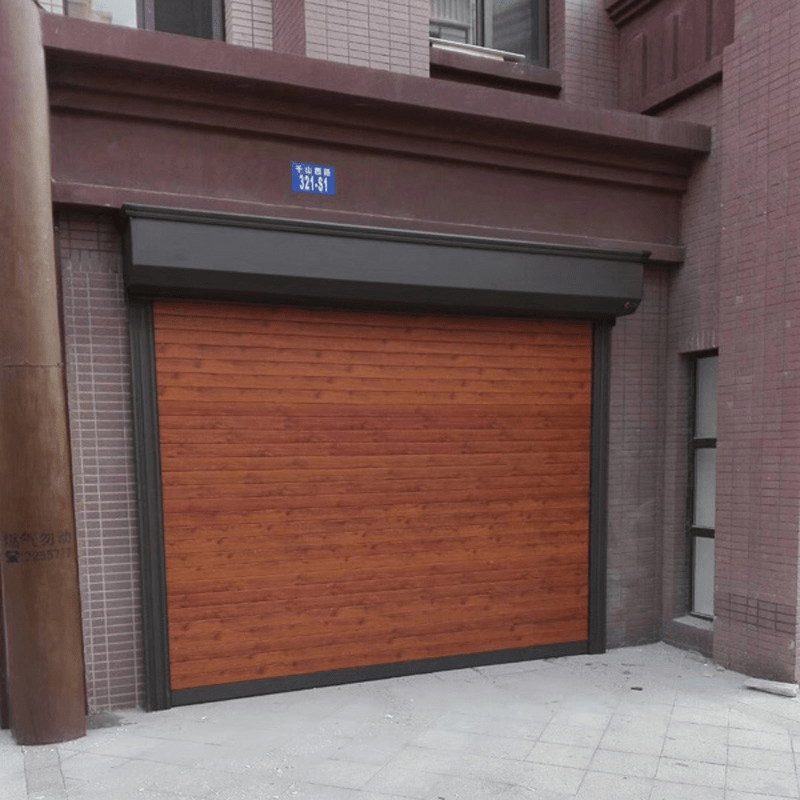

There are also slats of aluminum with an imitated wood finish, an interesting option for some garages.

Installation

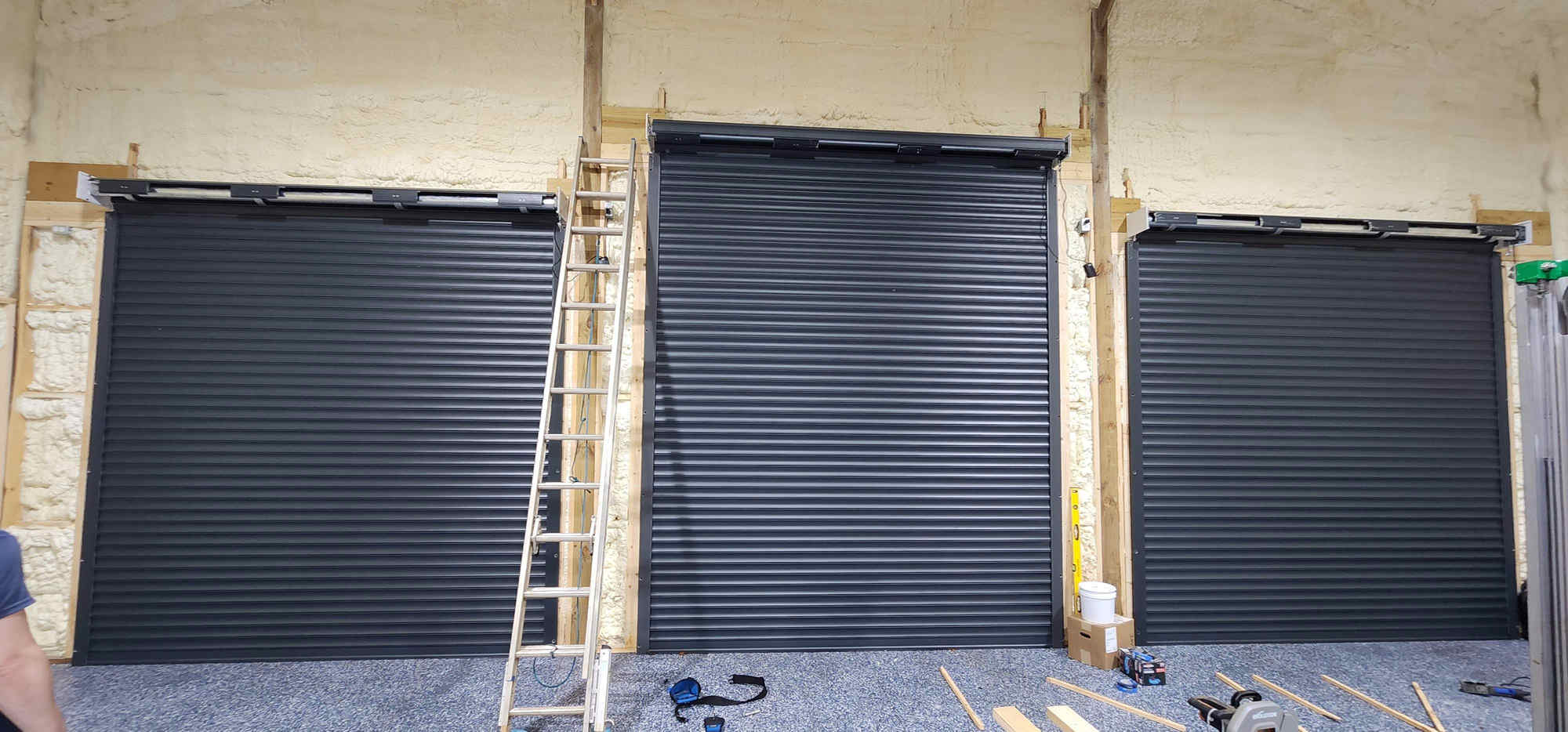

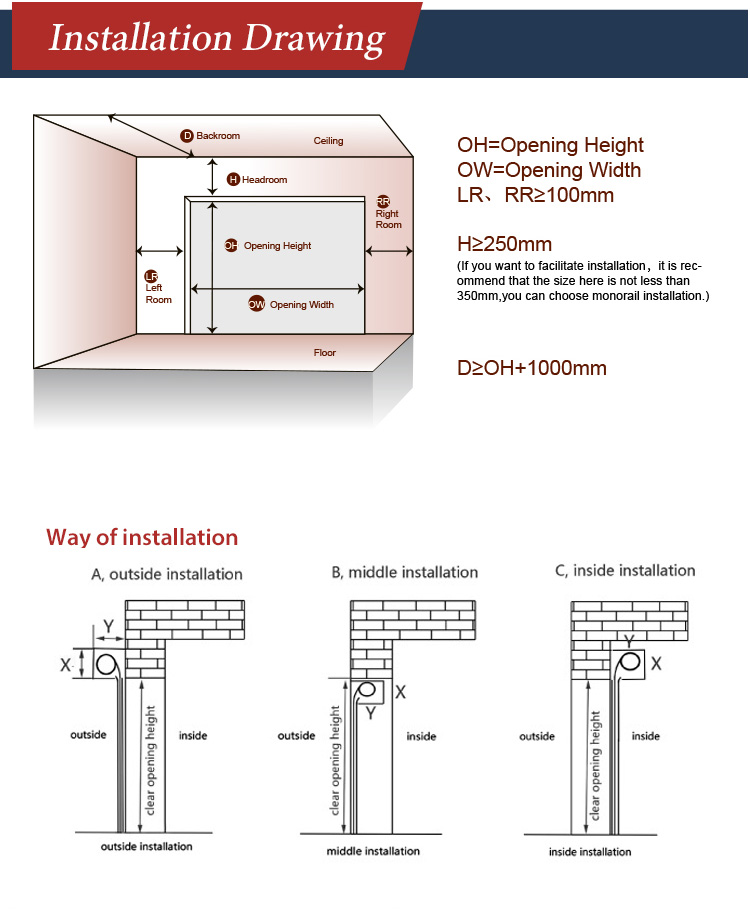

The space required to install a garage rolling door will depend on whether the door is placed "attached" (behind the clear opening and screwed to the wall) or "inserted" into the opening itself. In either case, it must be taken into account that the guides occupy approximately 18 cm on each side and the top cover between 32 and 40 cm above (depending on the slat style).

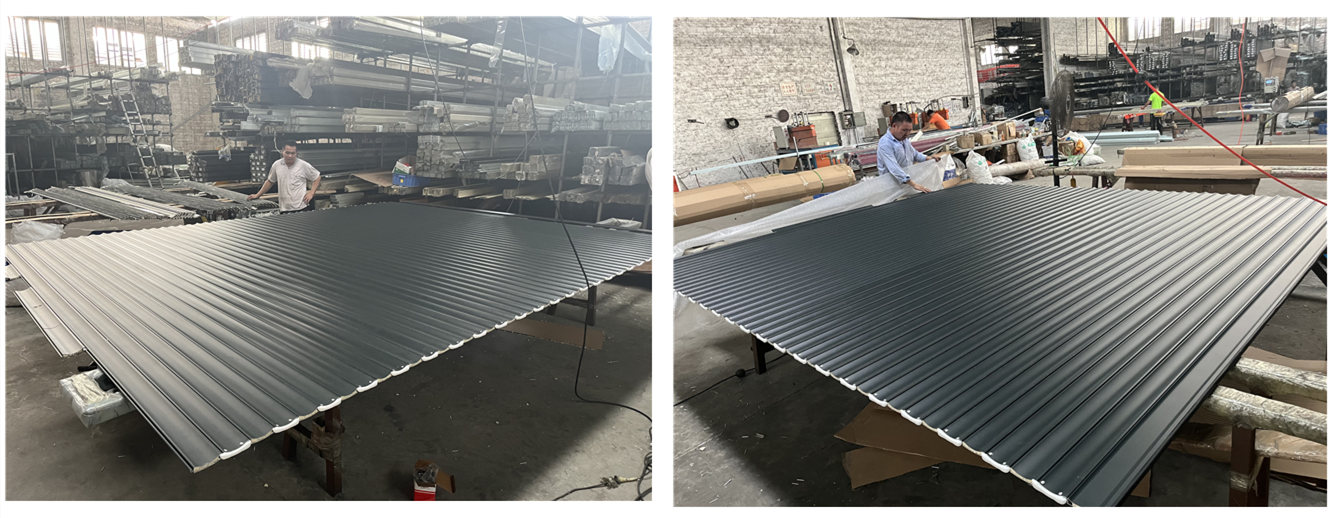

Quality check before shipment

The material or product qualification certificate shall be provided when the material enters our factory, and on-site quality verification and record shall be conducted according to the material supply plan and relevant standards. And the QC will double check with the product surface,running  performance,hardware quality

Customer's feedback

The Rolling shutter quality is very good, the aluminum panel is thick and strong. Good sealing, rolling smoothly we make it with a very easy installation, I think it can be used for a long time.------By Dick

LD-GR80 Aluminum Automatic Remote Control Garage Rolling Door For Villa

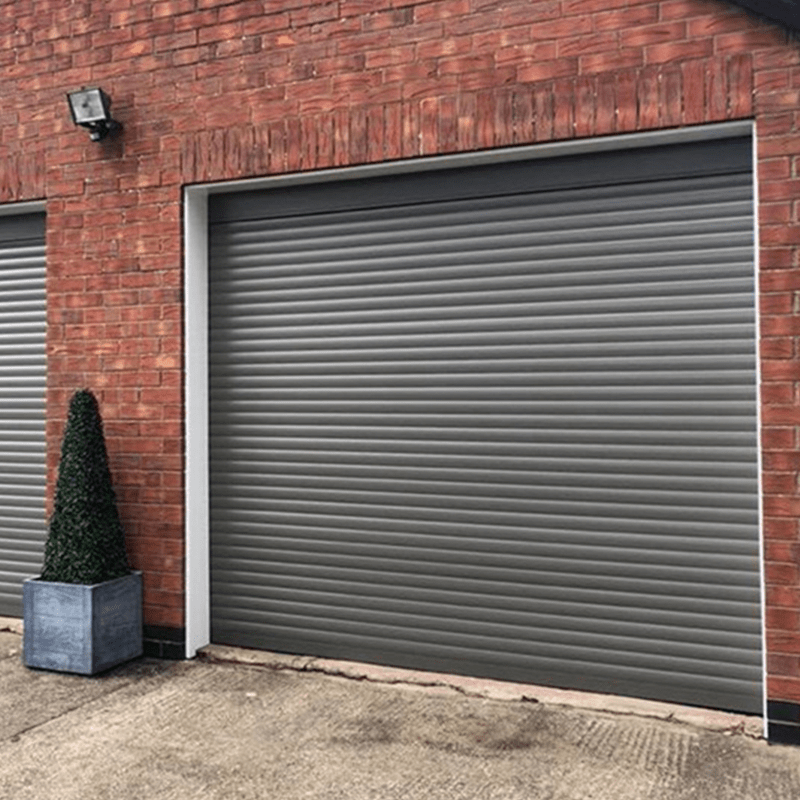

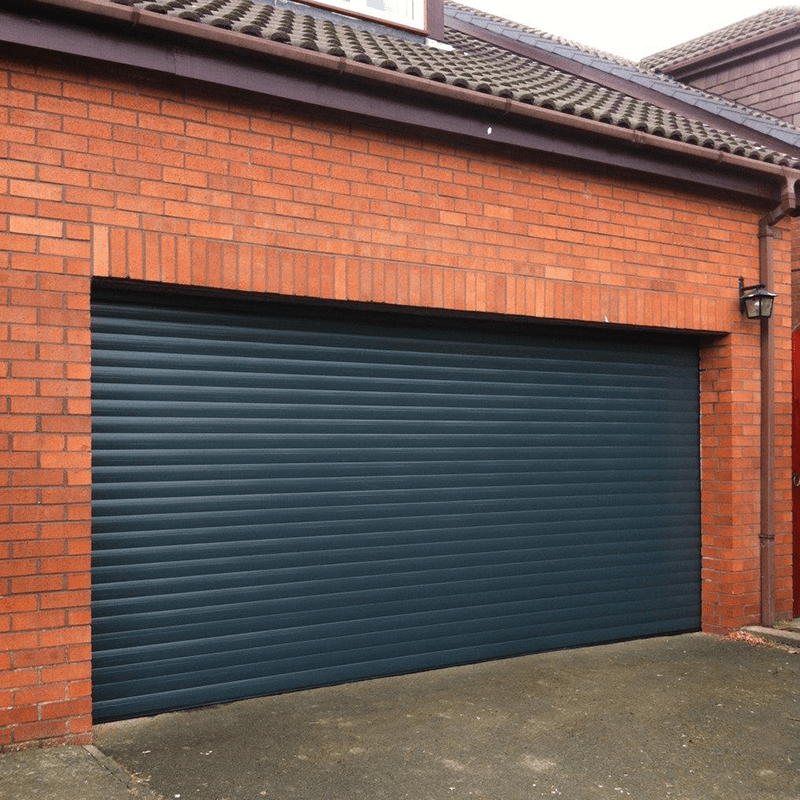

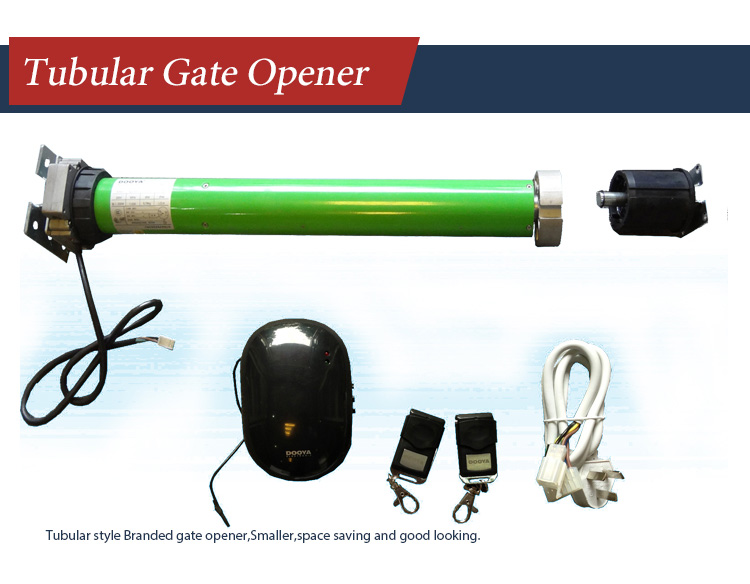

This is a good solution when we do not have an option for the doors to be collected on the ceiling. The rolling doors are used for covering garage of villa. They are automated with a motor in the axis of the roller.
  • Color : Customized
  • Payment : TT / LC / Paypal / Western Union
  • Shipping Port : Guangzhou / Shenzhen Post
  • Lead Time : 7-10 Days
  • warranty : 5 years
