It is widely used in industries such as electronics, precision instruments, medicine, food, printing and packaging, car manufacturing, air shower, purification workshop, storage and logistics, welding, baking paint, etc., which have high requirements in sanitary conditions, achieving rapid operation, preventing dust and mosquitoes. Improve work efficiency and save energy.

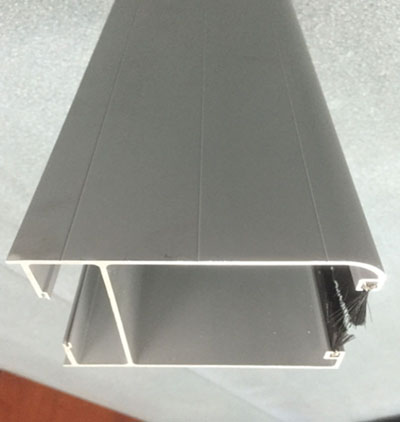

Guide rail:

High Guide Oxidation Industrial Aluminum Alloy Large Guide Rail

Color: Frosted Alumina Silver

Size: 100 * 135MM

Thickness: 2.5mm

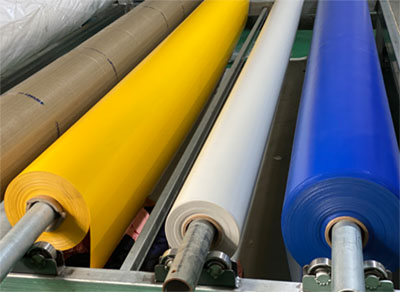

Curtain:

High-density PVC mesh fabric with a thickness of 0.9 mm, with environmental protection, self-cleaning, flame retardant and resistance to UV rays. Available in orange, blue, yellow, green, silver and white.

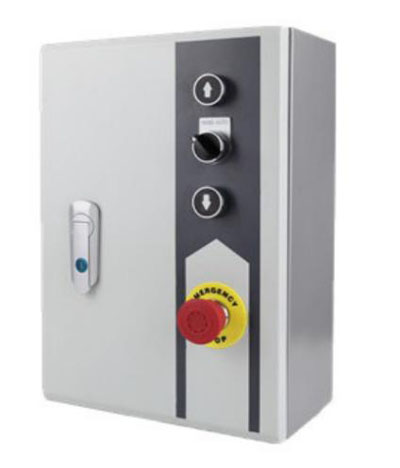

Control system:

The POWEVER (US Servo Chip) servo control system can realize double door lock function.High precision absolute encoder

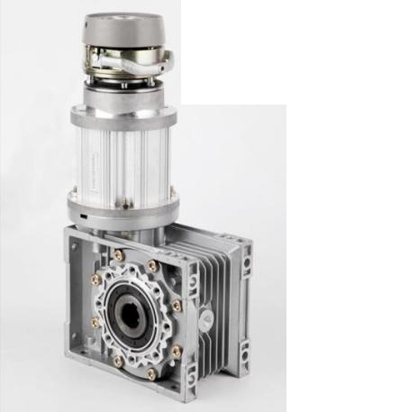

Energy system:

POWEVER high-performance servo motor.

Motor power: 0.75 KW (maximum applicable area 20 square meters), protection level: IP54 / IP55

Operating ambient temperature: -30 degrees - +60 degrees Celsius.

Adjustable operating speed

Open the door: 0.8-1.5M / S

Closed: 0.6-1.2M / S

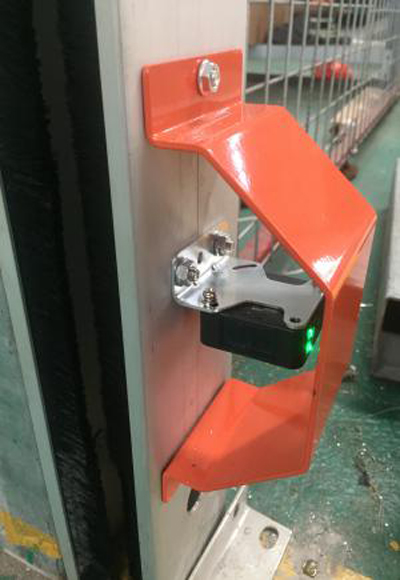

Safety device:

G-TEK Infrared Photoelectric Protection

(When the car, person and goods pass by, the infrared ray will be blocked, the motor will be reversed, and the safety of the car, person and door will be protected)
